Industrial Thin Film Rectification Evaporator

1)Certification: CE, ISO, UL, SGS certification.
2)Supply Single stage, Dual stage, Three stage.
3)High vacuum degree: 0.1Pa.
4)Control system: ABB.
5)Material:316 stainless steel.
6)OEM & ODM support.
7)Warranty:1 Year.
8)Mainly used for high-temperature heat transfer oil.

Product Description

Industrial Thin Film Rectification Evaporators for Precision Deposition

Achieve unmatched vacuum stability (±0.001Pa) and 99.999% material purity with our Industrial Thin Film Rectification Evaporator. Designed for semiconductor manufacturing, optical coating, solar panel production, and advanced research, our systems comply with SEMI, CE, and UL standards. Whether you’re scaling high-yield chip fabrication or optimizing CIGS solar layers, our technology ensures rapid, contamination-free evaporation with industry-leading precision.

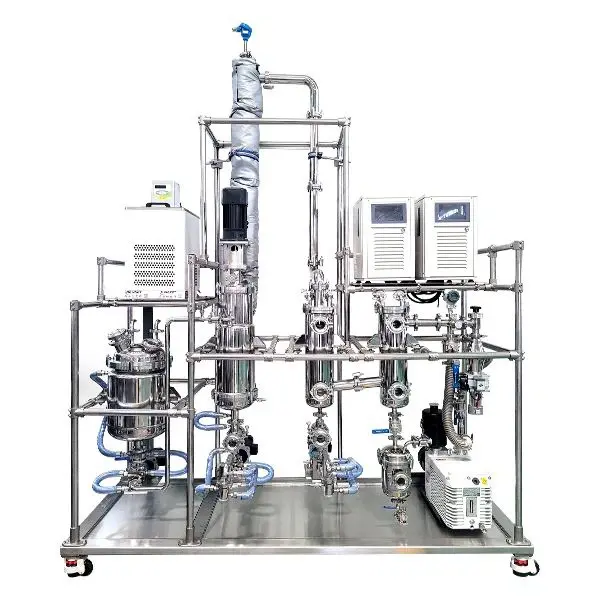

product-1-1

Why Choose Our Thin Film Evaporators?

Core Technology Advantages

Gas Rectification Nozzle System: Reduces thickness variation to ±3% (vs. ±8% in conventional systems), minimizing material waste by 40%.
Wavelength-Specific Control: Adjust deposition rates for optical coatings between 250–2000nm, ideal for TiO₂/SiO₂ anti-reflective layers.
High-Temperature Stability: Maintains 0.1Pa vacuum even at 400°C, critical for heat-sensitive pharmaceutical or MEMS applications.

Semiconductor Manufacturing

Materials: Al, Cu, W
Substrate Size: Up to 300mm wafers
Throughput: 300 wafers/hour

Optical Component Production

Materials: SiO₂, TiO₂, MgF₂
Substrate Size: 300mm lenses
Uniformity: <0.05nm RMS roughness

Solar Panel Fabrication

Materials: CIGS, CdTe
Substrate Size: 2m²
Deposition Speed: 10nm/sec

Research & Development

Modular chambers for hybrid organic-inorganic films
Python/LabVIEW API integration

Built for Global Compliance & Scalability

Certifications

SEMI S2/S8, CE, UL 1703, RoHS
Regional Approvals: BIS (India), SNI (Indonesia)

Modular Configurations

Base Unit: 316L stainless steel chamber, ABB control system
Add-Ons:
Cryo pumps (<10⁻⁷ Torr)
In-situ thickness monitors
Cluster tool compatibility

Proven ROI & Reliability

Our ROI Calculator shows an average payback period of 14 months for solar manufacturers using Industrial Thin Film Rectification Evaporator, thanks to:

20–30% energy savings vs. thermal evaporation
99% on-time delivery with a 1-year warranty

Trusted by Innovators Worldwide

MEMS Foundry: 22% yield increase with in-situ contamination sensors.
Optical OEM: Achieved 0.8% reflectivity on 300mm lenses.
Solar Producer: Scaled to 8MW/year capacity per system.

Flexible Support, Every Step of the Way

24/7 Technical Assistance: Hubs in the USA, Germany, Singapore, and Brazil.
Localized Service: Multilingual interfaces (EN/ES/HI/CN) and grid voltage adaptability (220V–480V).
