The Role of Short Path Wiped Film Distillation in Producing Ultra-Pure Compounds
When manufacturers struggle with thermal degradation and product contamination during purification processes, ultra-pure compound production becomes nearly impossible. Short Path Wiped Film Distillation emerges as a revolutionary solution that addresses these critical pain points by combining efficient heat transfer, minimal residence time, and superior separation capabilities. This advanced technology enables industries worldwide to achieve unprecedented purity levels in pharmaceutical ingredients, essential oils, and specialty chemicals without compromising molecular integrity.

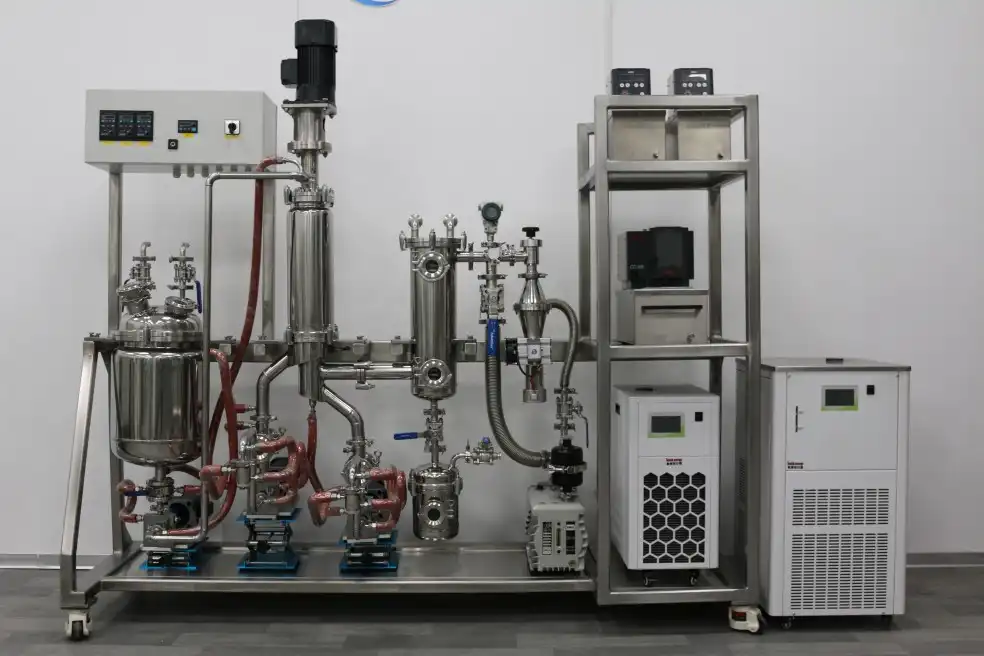

Understanding Short Path Wiped Film Distillation Technology
Short Path Wiped Film Distillation represents a breakthrough in separation technology that revolutionizes how industries handle heat-sensitive materials. This sophisticated process operates under high vacuum conditions while maintaining precise temperature control throughout the entire purification cycle. The fundamental principle involves spreading feed material into an ultra-thin film across a heated cylindrical surface using rotating wiper blades. These mechanical wipers create turbulent flow patterns that dramatically enhance mass transfer and heat distribution efficiency. The evaporated molecules travel only a few centimeters to reach internal condensers, significantly reducing the risk of thermal decomposition. Operating pressures typically range below one millibar, allowing volatile components to vaporize at substantially lower temperatures than conventional atmospheric distillation methods would require.
The Mechanical Principles Behind Film Formation
The rotating wiper blade assembly constitutes the technological heart of Short Path Wiped Film Distillation equipment. These precision-engineered blades feature diagonal slots that force liquid downward while simultaneously creating micro-mixing zones throughout the film. The continuous wiping action maintains a uniform film thickness between 0.1 to 1.0 millimeters, preventing dry spots that could cause localized overheating or product degradation. Feed material enters at the top of the vertical evaporation cylinder and progressively moves downward under the combined influence of gravity and mechanical agitation. The residence time typically ranges from one to three minutes, exponentially shorter than traditional batch distillation processes that may require thirty to sixty minutes of thermal exposure. This abbreviated contact period proves absolutely critical when processing thermally labile compounds such as vitamins, hormones, natural extracts, and pharmaceutical intermediates.
Vacuum Systems and Temperature Control Integration
Achieving ultra-pure compound production through Short Path Wiped Film Distillation demands sophisticated vacuum management coupled with precise thermal regulation. The vacuum system removes non-condensable gases and maintains the low-pressure environment essential for gentle evaporation. Modern installations typically employ a two-stage vacuum configuration combining vane-type mechanical pumps with roots blowers to achieve the necessary vacuum depth. Temperature control systems independently regulate the main evaporator, material insulation lines, internal condensers, and external cold traps. This multi-zone heating approach enables operators to establish optimal thermal gradients for specific separation objectives. Feed materials can be maintained at temperatures ranging from room temperature up to 300°C depending on compound stability and boiling point characteristics. The internal condenser operates at precisely controlled temperatures to selectively capture target fractions while allowing lighter components to pass through to secondary condensation stages.
Multi-Stage Separation for Maximum Purity
Well One's multi-stage Short Path Wiped Film Distillation systems incorporate sequential thin film evaporation followed by three-stage molecular distillation to achieve exceptional separation efficiency. The first-stage thin film evaporator removes residual solvents and moisture, reducing volatile content to less than 500 parts per million. This preliminary purification step prepares the feedstock for subsequent molecular distillation stages where individual heating temperatures target specific component fractions. The three-stage molecular distillation sequence exploits differences in mean free path lengths between various molecules in the mixture. By carefully adjusting evaporator temperatures at each stage, operators can selectively enrich minor components or isolate specific monomers from complex mixtures. This cascading approach dramatically improves overall separation performance compared to single-stage operations.
Process Workflow and System Integration
The complete Short Path Wiped Film Distillation system orchestrates multiple subsystems into a cohesive production platform. Raw materials stored in jacketed feeding tanks equipped with sight glasses and insulated ball valves enter the process through high-precision gear pumps capable of variable frequency speed regulation between 20 and 100 liters per hour. All material transfer pipelines incorporate jacketed insulation to prevent premature crystallization or viscosity changes during transport. Four independent heating circulation systems maintain distinct temperature zones throughout the evaporator network, while dedicated vacuum pumping stations preserve the necessary low-pressure environment. Multiple cooling units operating at different temperatures condense and collect separated product fractions into individual receivers. The system achieves true continuous operation capability, running twenty-four hours daily without shutdown requirements for recharging or cleaning between batches.
Advanced Sealing and Material Construction
Equipment reliability and product purity depend fundamentally on superior construction materials and sealing methodologies employed in Short Path Wiped Film Distillation apparatus. All product-contact surfaces utilize SS316L stainless steel, selected for its exceptional corrosion resistance and sanitary properties. Magnetic sealing technology transforms dynamic seals into static configurations, virtually eliminating potential leak points and reducing maintenance frequency. The scraper assemblies employ either wiper or roller configurations depending on product viscosity and processing requirements. International vacuum-standard connections ensure optimal system tightness throughout the apparatus. High-precision gear pumps handle both residue and distillate discharge streams, maintaining accurate flow control even under significant pressure differentials between process sections and receiving vessels.
Industrial Applications Across Multiple Sectors
Short Path Wiped Film Distillation technology serves diverse industrial applications where conventional separation methods prove inadequate. In pharmaceutical manufacturing, this technology purifies natural vitamin E, extracts solanesol, refines nerve acids, and removes harmful plasticizers from medicinal oils. The gentle processing conditions preserve bioactive properties while achieving pharmaceutical-grade purity specifications. Petrochemical applications include preparing high-temperature heat transfer oils, formulating specialized lubricating oils, refining Fischer-Tropsch wax, purifying petroleum derivatives, and developing novel fuel formulations. The new materials sector employs Short Path Wiped Film Distillation for epoxy resin refinement, packaging adhesive purification, film material processing, lactide synthesis, and preparing waterproof and antifouling coatings. Each application benefits from the technology's ability to handle thermally sensitive materials while delivering consistently high-quality products.
Pharmaceutical and Nutraceutical Purification
The pharmaceutical industry particularly values Short Path Wiped Film Distillation for processing active pharmaceutical ingredients that degrade rapidly under elevated temperatures. Polyethylene glycol synthesis benefits from microchannel reactor technology combined with subsequent molecular distillation to achieve narrow molecular weight distributions impossible with traditional batch reactors. Squalene purification employs multi-stage molecular distillation to remove fatty acid and ester impurities, ultimately achieving 98% purity levels suitable for pharmaceutical applications. The process handles crude extracts following saponification and esterification treatments, effectively eliminating unwanted components while maximizing target compound recovery. Natural extract processing represents another critical application area where Short Path Wiped Film Distillation preserves delicate molecular structures while concentrating bioactive components.
Food Industry and Natural Product Processing
Food-grade applications demand the highest safety standards coupled with preservation of nutritional properties, requirements ideally suited to Short Path Wiped Film Distillation capabilities. Fish oil purification exemplifies this technology's value proposition, achieving 70% recovery rates for EPA and DHA ethyl esters compared to merely 16% recovery using traditional methods. The four-stage molecular distillation system produces 80% concentrated omega-3 products with excellent color, minimal fishy odor, and low peroxide values. Tea oil deacidification leverages molecular distillation's gentle processing characteristics to remove free fatty acids without damaging beneficial components or generating excessive waste streams. Rose essential oil refining demonstrates how Short Path Wiped Film Distillation handles extremely valuable natural products, transforming crude supercritical fluid extracts into high-purity essential oils suitable for premium cosmetic and aromatherapy applications while avoiding the molecular rearrangement and oxidation associated with traditional dewaxing methods.
Technical Specifications and System Capabilities
Modern Short Path Wiped Film Distillation equipment exemplifies precision engineering tailored for demanding industrial purification requirements. The WMD-200-4 model features a 200-liter jacketed feeding tank with dual sight glasses and an insulated bottom discharge valve. Variable frequency feed pumps deliver 20 to 100 liters per hour with exceptional accuracy. The evaporator provides two square meters of heating surface complemented by eight square meters of internal cooling area within a 500-millimeter diameter evaporation cylinder. Magnetic sealing mechanisms ensure leak-free operation while wiper or roller scrapers maintain optimal film characteristics. Separate high-precision gear pumps independently control residue and distillate discharge flows. Jacketed insulation extends throughout all material pipelines to maintain temperature uniformity and prevent unwanted phase changes.
Heating and Cooling System Architecture
The thermal management infrastructure supporting Short Path Wiped Film Distillation operations comprises multiple independent temperature control circuits. The main evaporator heater operates from room temperature to 300°C with 38 kilowatts power capacity and 110 liters per minute circulation rate. Material insulation heating reaches 200°C maximum temperature using 10 kilowatts power with 50 liters per minute circulation flow. The internal condenser employs a combined heater-chiller unit spanning -20°C to 200°C, featuring 15 kilowatts heating capacity, 30 kilowatts cooling power, and 70 liters per minute circulation. External condensers achieve temperatures from -80°C to room temperature through dual-stage cooling with 4.1 kilowatts power at -40°C and 1.2 kilowatts at -80°C, circulating 35 liters per minute. Vacuum pumping combines a vane vacuum pump rated 30 liters per second with a 300 liters per second roots pump to establish and maintain the requisite low-pressure environment.
Quality Assurance and Safety Features
Equipment design incorporates numerous features enhancing operational safety, maintenance accessibility, and product quality assurance. Dedicated operating platforms facilitate routine maintenance and process monitoring activities. Sampling ports positioned between each distillation stage enable real-time material composition analysis without disrupting continuous operation. Pressure isolation devices maintain independent vacuum levels at each separation stage, optimizing performance across the entire cascade. Explosion-proof electrical components meet stringent safety requirements for potentially hazardous processing environments. Magnetic coupling mechanisms throughout moving components eliminate dynamic seal failure modes. International vacuum connection standards ensure superior system tightness essential for maintaining design vacuum levels. Each equipment system undergoes rigorous factory acceptance testing before shipment, with complete material certifications and supplier quality documentation accompanying every installation.
Manufacturing Excellence and Customization Capabilities
Xi'an Well One Chemical Technology Co., Ltd. leverages 19 years of specialized experience developing Short Path Wiped Film Distillation solutions for global markets. The company operates comprehensive facilities including 1,500 square meters of office space, 500 square meters dedicated to research and development laboratories, and 4,500 square meters of manufacturing floor area. Multidisciplinary engineering teams encompassing process development specialists, mechanical design engineers, 3D modeling experts, and automation control professionals collaborate throughout equipment development cycles. The independent R&D laboratory provides customers with feasibility studies, process development services, laboratory testing programs, and pilot-scale validation trials. This integrated approach ensures production equipment delivers guaranteed capacity and product quality performance based on rigorous experimental validation.
OEM and ODM Customization Services
Well One's customization capabilities address unique client requirements through tailored Short Path Wiped Film Distillation system configurations. Recent custom solutions include systems where all electrical accessories comply with UL Listed standards while incorporating Huber brand auxiliary equipment in compact footprints with simplified operation. Glass feeding tank designs with two external condensers and square tube support brackets accommodate specific material handling preferences. Integrated stirring tank dissolution systems feeding directly into wiped film distillation equipment solve challenging feedstock preparation requirements. Dual-stage one-square-meter wiped film configurations optimize separation performance for particular compound families. The engineering team generates comprehensive 3D animations during design phases, enabling clients to visualize equipment layouts and operational sequences before manufacturing commences. This collaborative design methodology ensures final installations meet exacting technical specifications while integrating seamlessly into existing production facilities.
Certification and Quality Management
Comprehensive quality management systems govern every aspect of Short Path Wiped Film Distillation equipment production. ISO9001 quality system certification validates standardized manufacturing processes and continuous improvement methodologies. CE certification confirms compliance with European safety and performance standards. An in-house UL testing laboratory enables thorough electrical safety evaluation before equipment shipment. All construction materials arrive with complete test certifications from rigorously screened suppliers subject to annual random inspection and performance rating. Internationally recognized component brands populate critical system positions including pumps, motors, heating elements, and control instrumentation. Proprietary core technologies benefit from intellectual property protection through patent registration. Final equipment undergoes extensive factory testing protocols verifying vacuum performance, temperature control accuracy, flow characteristics, and separation efficiency before receiving shipment authorization.
Global Reach and Technical Support Infrastructure
International customers benefit from Well One's established logistics network and comprehensive support services. Equipment packaging utilizes export-grade wooden crates complying with international fumigation-free standards. Shipping options include sea freight for large installations, air cargo for expedited delivery, and express courier services for replacement components. Delivered Duty Paid arrangements simplify international procurement by consolidating all import costs and responsibilities. Door-to-door delivery services eliminate customer handling requirements while Well One assumes transportation risk throughout the shipping process. The company maintains extensive spare parts inventories supporting rapid response to maintenance requirements. Technical support teams provide remote troubleshooting assistance, operator training programs, and on-site commissioning services ensuring optimal Short Path Wiped Film Distillation system performance throughout equipment lifecycle.
Exhibition Participation and Industry Engagement
Well One actively participates in international trade exhibitions demonstrating Short Path Wiped Film Distillation capabilities to global audiences. These engagements facilitate direct technical discussions between engineering teams and potential clients, enabling detailed exploration of application-specific requirements and solution possibilities. Exhibition attendance also provides opportunities to showcase recent equipment innovations, present case studies documenting successful installations, and build relationships within professional communities. The company's exhibition presence reflects its commitment to transparency and customer engagement, inviting prospects to examine equipment construction quality, discuss technical specifications with subject matter experts, and observe operational demonstrations illustrating system capabilities.
Conclusion
Short Path Wiped Film Distillation technology delivers unmatched performance for ultra-pure compound production across pharmaceutical, food, petrochemical, and specialty chemical industries. Its combination of minimal thermal exposure, precise temperature control, multi-stage separation capabilities, and continuous operation makes it indispensable for processing thermally sensitive materials where conventional methods fail. Well One's integrated approach encompassing research, development, manufacturing, and support ensures clients receive optimized solutions backed by comprehensive technical expertise and proven industrial experience.
Cooperate with Xi'an Well One Chemical Technology Co., Ltd
Since 2006, Xi'an Well One Chemical Technology Co., Ltd., backed by Xi'an NewSet Chemical Equipment Technology Co., Ltd., has specialized in synthesis and purification separation equipment. With a 1,500 m² office, 500 m² R&D lab, and 4,500 m² factory, the company offers complete process development, design, testing, and pilot services. Its expert team delivers molecular distillation devices from laboratory to industrial scale, ensuring production capacity and quality. Premium quality through selected materials ensures top-grade products. OEM and ODM capabilities provide custom designs with 3D animation. Comprehensive service spans R&D, production, sales, and support. The company's own factory covers over 5,000 square meters serving pharmaceutical, food, new materials, petrochemical, essence, and fine chemicals industries.
As a leading China Short Path Wiped Film Distillation factory, China Short Path Wiped Film Distillation supplier, and China Short Path Wiped Film Distillation manufacturer, Well One offers China Short Path Wiped Film Distillation wholesale pricing with Short Path Wiped Film Distillation for sale meeting international quality standards. Every High Quality Short Path Wiped Film Distillation system comes with competitive Short Path Wiped Film Distillation price options. Whether you need laboratory-scale equipment or industrial production systems, Well One's 19 years of experience ensures optimal solutions for your purification challenges. Contact our team today to discuss your specific requirements and discover how our advanced distillation technology can transform your production capabilities. Bookmark this page for future reference whenever you face purification challenges. Reach us at info@welloneupe.com to request detailed technical specifications, pricing information, and customization possibilities tailored to your unique application requirements.
References
1. Perry, R.H., Green, D.W., and Maloney, J.O., "Perry's Chemical Engineers' Handbook, Eighth Edition," McGraw-Hill Education, Section 13: Distillation.
2. Batistella, C.B., Moraes, E.B., Filho, R.M., and Maciel, M.R.W., "Molecular Distillation: Rigorous Modeling and Simulation for Recovery of Fatty Acids and Tocopherol," Applied Biochemistry and Biotechnology.
3. Lutisan, J., Cvengros, J., and Micov, M., "Heat and Mass Transfer in the Evaporating Film of a Molecular Evaporator," Chemical Engineering Journal.
4. Martins, P.F., Ito, V.M., Batistella, C.B., and Maciel, M.R.W., "Free Fatty Acid Separation from Vegetable Oil Deodorizer Distillate Using Molecular Distillation Process," Separation and Purification Technology.
