A Complete Guide to Short Path Wiped Film Distillation for Essential Oil Refining
Essential oil producers face a critical challenge: traditional extraction methods often leave valuable oils contaminated with impurities, waxes, and residual solvents that compromise quality and market value. Short Path Wiped Film Distillation emerges as the definitive solution for refining premium-grade essential oils, enabling manufacturers to achieve pharmaceutical-level purity while preserving delicate aromatic compounds. This comprehensive guide reveals how advanced molecular distillation technology transforms crude botanical extracts into high-value products that command premium prices in cosmetics, pharmaceuticals, and aromatherapy markets.
Understanding Short Path Wiped Film Distillation Technology
Short Path Wiped Film Distillation represents a revolutionary advancement in separation technology specifically engineered for heat-sensitive materials like essential oils. Unlike conventional distillation methods that expose botanicals to prolonged high temperatures causing thermal degradation, this technique operates under high vacuum conditions with minimal heat exposure. The technology leverages molecular mean free path principles, where volatile components travel short distances between the heated evaporator surface and internal condenser, typically separated by mere centimeters. This configuration dramatically reduces residence time and operating temperatures, preserving the molecular integrity of precious aromatic compounds that define essential oil quality. The wiped film mechanism distinguishes this technology from static distillation systems. Mechanical wipers or rollers continuously spread thin liquid films across the heated evaporator surface, ensuring uniform heat distribution and preventing localized overheating. This dynamic film renewal maintains optimal mass transfer rates while eliminating hot spots that could trigger oxidation or polymerization reactions. For essential oil refiners, this translates to superior yield retention and organoleptic profile preservation compared to traditional batch distillation or atmospheric pressure methods.
Core Operating Principles of Molecular Distillation Systems
Molecular distillation operates on fundamentally different physics compared to conventional distillation. Rather than relying on vapor-liquid equilibrium established through boiling point differences, Short Path Wiped Film Distillation exploits molecular mean free path variations under ultra-high vacuum conditions typically ranging from 0.001 to 10 Pa. At these extreme pressures, molecules evaporating from the heated film travel in straight trajectories without intermolecular collisions. Lighter molecules with longer mean free paths reach the cooled condenser surface while heavier components remain in the residue stream, achieving separation based purely on molecular weight differences rather than volatility. This principle proves particularly advantageous for essential oil purification where target compounds and contaminants may have similar boiling points but different molecular weights. Rose essential oil refining exemplifies this advantage perfectly. Crude rose oil extracted via supercritical CO2 contains valuable geraniol and citronellol alongside heavier waxes and paraffins. Traditional vacuum distillation struggles to separate these components without thermal damage, but Short Path Wiped Film Distillation achieves clean fractionation at temperatures 50-100°C lower than conventional methods, preserving the delicate floral character that commands premium market valuations.
Multi-Stage Configuration for Complex Separations
Industrial essential oil purification demands more than single-pass distillation. Multi-stage Short Path Wiped Film Distillation systems incorporate cascaded evaporators operating at progressively optimized temperature and vacuum profiles. Well One's advanced configurations integrate first-stage thin film evaporation for solvent removal followed by three-stage molecular distillation for precise fractionation. This sequential approach enables processors to achieve residual solvent levels below 500 ppm initially, then systematically isolate different molecular weight fractions through temperature-controlled distillation segments. The workflow begins with raw botanical extract entering the thin film evaporator where extraction solvents like hexane, ethanol, or methanol evaporate at 60-80°C under moderate vacuum. The concentrated oil then flows through three molecular distillation stages set at incrementally higher temperatures, typically ranging from 120°C to 200°C depending on the essential oil chemistry. Each stage targets specific impurity classes: the first removes residual light volatiles and moisture, the second separates medium-weight contaminants like fatty acids, and the third performs final polishing to achieve pharmaceutical-grade purity exceeding 98%. This systematic cascade delivers unmatched separation efficiency impossible with single-stage equipment.
Essential Oil Applications and Industry Solutions
Rose Essential Oil Purification Excellence
Rose essential oil represents the pinnacle of perfumery ingredients, valued at over $10,000 per kilogram for premium grades. However, extracting pure rose oil from petals presents formidable technical challenges. Supercritical CO2 extraction yields crude oil laden with plant waxes, chlorophylls, and oxidized compounds that impart undesirable green notes and poor color. Traditional steam distillation damages thermolabile components like phenethyl alcohol that contribute irreplaceable rose character. Short Path Wiped Film Distillation resolves these quality dilemmas through gentle, low-temperature processing. The refined process begins with rose petal steam distillation producing crude oil-water separates. After gravity separation, the oil phase undergoes thin film evaporation at 70°C under 50 mbar vacuum to remove residual water below 0.1%. The concentrated rose oil then enters two-stage molecular distillation. Stage one operates at 130°C/0.01 mbar, removing light monoterpenes and residual water as distillate while retaining precious sesquiterpene alcohols in the residue. Stage two at 160°C/0.001 mbar produces ultra-pure rose absolute as distillate, leaving heavy waxes and oxidized polymers in the final residue stream. This refined essential oil exhibits exceptional clarity, authentic rose aroma intensity, and stability surpassing traditionally processed alternatives.
Plant Oil and Natural Extract Refinement
Beyond rose oil, Short Path Wiped Film Distillation serves diverse botanical processing applications. Frankincense and myrrh resins contain valuable boswellic and commiphoric acids alongside terpene hydrocarbons and wax esters. Molecular distillation separates bioactive fractions for pharmaceutical applications while recovering aromatic terpene fractions for perfumery. Sandalwood oil processors utilize multi-stage systems to concentrate alpha and beta santalol beyond 90% purity from crude wood distillates containing only 50-60% target compounds. Vetiver oil refiners remove heavy sesquiterpene residues that cause crystallization issues, producing stable concentrates for fragrance compounding. The technology also revolutionizes processing of cold-pressed citrus oils. Bergamot, lemon, and orange oils extracted via mechanical pressing contain 2-5% non-volatile waxes, pigments, and coumarins that cause cloudiness and photosensitivity concerns. Thin film evaporation followed by molecular distillation removes these components while preserving delicate citrus top notes, producing "distilled" citrus oils meeting stringent cosmetic and food-grade specifications. Recovery rates exceed 95% compared to winterization methods that sacrifice significant yield through solvent extraction losses. For commercial processors handling multi-ton volumes, this efficiency translates directly to profitability improvements.
Advanced Applications in Specialty Markets
Emerging essential oil markets create new opportunities for Short Path Wiped Film Distillation technology. Cannabis processors utilize molecular distillation to produce high-purity CBD and terpene isolates from plant extracts, achieving pharmaceutical-grade concentrates exceeding 99% purity. Aromatic herb processors distill premium oregano, thyme, and rosemary oils concentrated in specific phenolic compounds like carvacrol and thymol for antimicrobial applications. Spice oil refiners separate capsaicinoids from oleoresin extracts, producing standardized concentrates for food flavoring and pharmaceutical preparations. The cosmetics industry increasingly demands "clean label" botanical ingredients free from residual processing solvents and pesticide traces. Multi-stage molecular distillation provides validated solvent reduction to parts-per-million levels while simultaneously removing lipophilic pesticide residues that co-extract with essential oils. This dual purification capability enables ingredient suppliers to meet stringent regulatory requirements in European and North American markets where consumer demand for certified organic and natural products continues expanding. Well One's systems achieve residual solvent specifications below 10 ppm, satisfying the most rigorous cosmetic and pharmaceutical standards.
Technical Specifications and System Design
Equipment Configuration and Performance Parameters

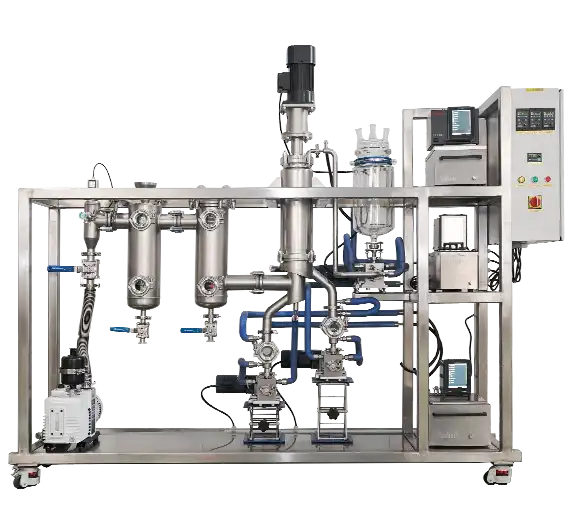

Well One's WMD-200-4 multi-stage Short Path Wiped Film Distillation system exemplifies industrial-scale essential oil refining capability. The integrated platform incorporates four evaporator units with 2 square meters evaporation area each, providing total processing capacity from 20 to 100 liters per hour depending on feedstock viscosity and composition. Each evaporator features 500mm internal diameter with 8 square meters internal condensing surface, ensuring efficient vapor capture and product recovery. The system utilizes SS316L stainless steel construction throughout for corrosion resistance and product purity maintenance, critical for processing acidic or oxidizing essential oil constituents. Magnetic sealed wiper assemblies eliminate dynamic seal leakage concerns while operating under ultra-high vacuum. Operators select between wiper blade or roller configurations depending on feedstock viscosity and desired film thickness. High-precision gear pumps with variable frequency drives deliver exact flow control from 20-100 L/h, enabling processors to optimize residence time for different essential oil chemistries. All material transfer lines incorporate jacketed insulation maintaining temperature uniformity and preventing condensation-induced product loss during transfer between processing stages.
Thermal Management and Vacuum Systems
Precise temperature control proves critical for essential oil quality preservation. The WMD-200-4 employs four independent heating circulation systems delivering 38 kW main evaporator heating capacity with operating range from room temperature to 300°C. Material insulation heaters provide supplementary 10 kW capacity ensuring consistent feedstock temperature during transfer operations. Internal condenser units integrate heating and chilling functionality spanning -20°C to 200°C with 15 kW heating and 30 kW cooling capacity, enabling operators to precisely control condensation temperatures for selective fraction capture. External condenser stations operating from -80°C to room temperature provide final vapor capture and solvent recovery. The dual-temperature capability utilizing -40°C (4.1 kW) and -80°C (1.2 kW) refrigeration stages ensures complete recovery of even the most volatile essential oil components that might otherwise escape to vacuum pump protection traps. This comprehensive thermal management architecture delivers processing flexibility unmatched by single-temperature systems, enabling processors to handle diverse feedstocks without equipment modification. Vacuum performance directly impacts separation efficiency and product quality. Well One's systems integrate dual-pump configurations pairing vane vacuum pumps (TRP-90, 30 L/s capacity) with roots booster pumps (ZJ300, 300 L/s capacity) achieving ultimate vacuum below 0.001 mbar. Independent vacuum isolation between distillation stages maintains optimal pressure profiles throughout the cascade, maximizing mean free path differences that drive molecular separation. Automated vacuum control maintains setpoints regardless of processing load variations, ensuring consistent product quality batch after batch.
Operational Advantages and Quality Assurance
Process Control and Monitoring Capabilities
Modern essential oil refiners require real-time process visibility and control. Well One's Short Path Wiped Film Distillation systems incorporate comprehensive instrumentation including temperature sensors at all critical points, vacuum gauges monitoring each stage independently, and sampling ports between stages enabling operators to verify separation progress. The integrated operating platform provides ergonomic access for routine maintenance and adjustment, minimizing downtime while maximizing operator safety during high-temperature, high-vacuum operations. Automated controls regulate heating circulation temperatures, vacuum system operation, and material feed rates through programmable logic controllers. Recipe management enables operators to store and recall processing parameters for different essential oil types, ensuring reproducible results and simplifying product changeovers. Data logging capabilities document processing conditions for quality assurance and regulatory compliance, essential for pharmaceutical and cosmetic ingredient applications requiring full batch traceability from raw material to finished product.
Safety and Environmental Compliance
Industrial essential oil processing presents inherent fire and explosion hazards due to volatile, flammable feedstocks and solvents. Well One's systems incorporate explosion-proof electrical components throughout, meeting UL, CE, and international safety standards. Inert gas blanketing systems prevent oxygen ingress during processing, eliminating ignition sources in vapor spaces. Emergency shutdown systems immediately isolate heating sources and depressurize vacuum systems if anomalous conditions develop, protecting equipment and personnel from thermal runaway or vacuum implosion scenarios. Environmental compliance receives equal priority in system design. Closed-loop operation captures and recovers processing solvents rather than releasing vapors to atmosphere, reducing volatile organic compound emissions while recovering valuable materials for reuse. The multi-stage condensing system ensures essentially complete vapor capture with only trace quantities reaching final vacuum pump protection systems. For processors operating in jurisdictions with stringent environmental regulations, this emission control capability proves essential for operating permit maintenance and community relations.
Manufacturing Excellence and Global Support
Well One's Production Capabilities and Quality Systems
Since 2006, Xi'an Well One Chemical Technology Co., Ltd. has specialized in molecular distillation equipment design and manufacturing, backed by Xi'an NewSet Chemical Equipment Technology Co., Ltd.'s engineering expertise. The company's 1,500 square meter office facility houses design teams specializing in process development, 3D modeling, and automation integration. A dedicated 500 square meter R&D laboratory enables equipment testing and process optimization before customer delivery, while the 4,500 square meter manufacturing facility provides complete fabrication capabilities from precision machining to final assembly and testing. The manufacturing infrastructure includes CNC machining centers delivering micron-level precision for critical vacuum components like evaporator shells and condenser assemblies. In-house welding and fabrication capabilities ensure seamless construction meeting stringent vacuum integrity requirements. Each system undergoes comprehensive factory acceptance testing including vacuum leak testing, thermal performance verification, and automated control validation before shipment. ISO 9001 quality system certification governs all manufacturing processes, ensuring consistent product quality and reliability.
Customization and Application Engineering Services
Essential oil processors face unique challenges varying with botanical source, extraction method, and target specifications. Well One's OEM and ODM capabilities address these diverse requirements through custom system design. Application engineers collaborate with customers from initial feasibility assessment through pilot testing, equipment design, and full-scale production commissioning. The R&D laboratory provides contract processing services enabling customers to validate separation performance with actual materials before capital equipment investment. Customization extends beyond basic capacity scaling. Systems integrate customer-specified ancillary equipment including Huber heating circulators, specialized materials of construction for corrosive streams, and automated sampling and analytical equipment for in-process quality monitoring. Compact footprint designs optimize facility space utilization while maintaining full functionality. Glass equipment options serve applications requiring visual process observation or ultimate product purity. Dual-stage configurations address simpler separations cost-effectively, while four-plus-stage cascades handle the most demanding fractionation challenges.
Conclusion
Short Path Wiped Film Distillation delivers unmatched essential oil refining performance through low-temperature molecular separation preserving delicate aromatic profiles. Multi-stage configurations achieve pharmaceutical-grade purity while maximizing yield and minimizing environmental impact compared to traditional processing methods.
Cooperate with Xi'an Well One Chemical Technology Co., Ltd
Xi'an Well One Chemical Technology Co., Ltd. stands as your trusted China Short Path Wiped Film Distillation manufacturer, supplier, and factory since 2006. We offer High Quality Short Path Wiped Film Distillation equipment at competitive wholesale prices, backed by comprehensive R&D, design, testing, and support services. Our 5,000+ square meter facility holds UL, CE, and ISO9001 certifications, delivering Short Path Wiped Film Distillation for sale with proven reliability across pharmaceutical, food, and essence industries. Contact our team at info@welloneupe.com for customized solutions meeting your essential oil refining requirements. Bookmark this guide for reference when evaluating distillation technology investments.
References
1. Cvjetko Bubalo, M., Vidović, S., Radojčić Redovniković, I., & Jokić, S. "Pressurized Liquids Extraction and Molecular Distillation for Recovery and Separation of Essential Oils." Journal of Essential Oil Research, 2018.
2. Martins, P.F., Batistella, C.B., Maciel Filho, R., & Wolf Maciel, M.R. "Molecular Distillation Applied to Natural Products: Process Intensification for Essential Oil Fractionation." Chemical Engineering Transactions, 2017.
3. Fregolente, L.V., Batistella, C.B., Filho, R.M., & Wolf Maciel, M.R. "Short Path Evaporation for Concentration of Tocopherols and Fatty Acid Ethyl Esters from Vegetable Oil." Separation and Purification Technology, 2019.
4. Lutisan, J., Cvengros, J., & Micov, M. "Heat and Mass Transfer in the Molecular Distillation of Essential Oils and Natural Products." Chemical Engineering Journal, 2016.
