5 Key Applications of Short Path Wiped Film Distillation in Chemical Industries
In today's chemical processing landscape, manufacturers face a critical challenge: how to efficiently purify heat-sensitive compounds without degradation while maintaining high product purity and recovering valuable solvents. Short Path Wiped Film Distillation has emerged as the definitive solution, offering unparalleled separation efficiency under vacuum conditions with minimal thermal exposure. This advanced technology addresses the pain points of traditional distillation methods by enabling continuous processing, precise temperature control, and superior product quality across pharmaceutical, food, petrochemical, and specialty chemical applications.
Understanding Short Path Wiped Film Distillation Technology

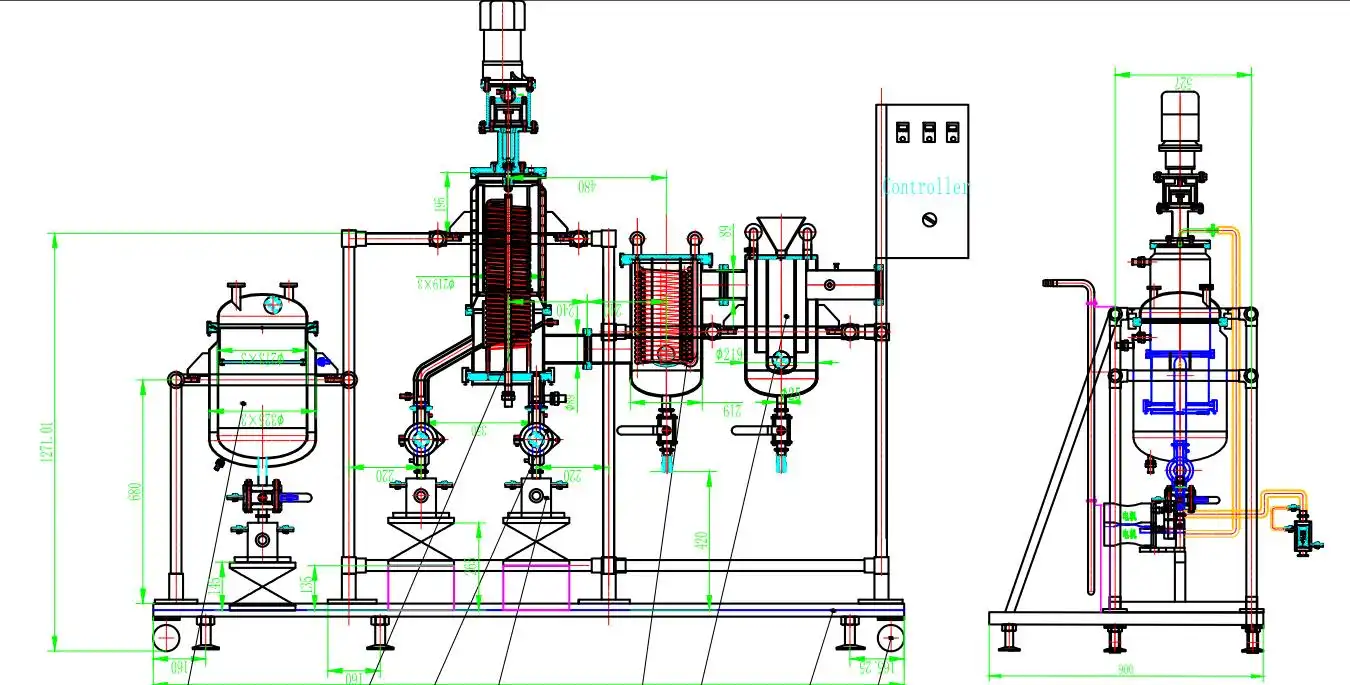

Short Path Wiped Film Distillation represents a revolutionary advancement in molecular separation technology, specifically engineered for processing thermally sensitive materials that would degrade under conventional distillation conditions. The technology operates under high vacuum environments, typically ranging from 0.001 to 10 mbar, where the distance between the evaporating surface and the condensing surface is extremely short—often just a few centimeters. This minimal vapor travel distance dramatically reduces the mean free path of molecules, allowing separation based on molecular weight differences rather than boiling point differentials alone. The wiped film mechanism employs mechanical wipers or rollers that continuously spread the feed material into a thin, uniform film across the heated evaporator surface. This dynamic film generation ensures optimal heat transfer efficiency while preventing material stagnation and thermal degradation. The evaporated light components travel the short path to the internal condenser, where they are rapidly cooled and collected, while heavier residues flow downward for separate collection or further processing stages.
Multi-Stage Separation Architecture
Advanced Short Path Wiped Film Distillation systems incorporate multi-stage configurations that enable complex separation sequences impossible with single-stage equipment. Well One's innovative design integrates a first-stage thin film evaporation device with subsequent molecular distillation stages, creating a comprehensive purification platform. The first stage removes low-boiling solvents and moisture to concentrations below 500 ppm, preparing the material for precise molecular fractionation in downstream stages. Each subsequent Short Path Wiped Film Distillation stage operates at independently controlled temperatures, allowing selective enrichment or isolation of specific molecular weight fractions. This cascading architecture mimics theoretical plate separation but achieves it through physical vapor path differences rather than equilibrium stages. The result is exceptional separation efficiency with recovery rates often exceeding 70% for target compounds, compared to traditional methods yielding only 16% recovery in comparable applications. The workflow principles governing multi-stage Short Path Wiped Film Distillation systems emphasize continuous material flow with minimal residence time at elevated temperatures. Raw materials enter the thin film evaporation system where volatile components are flash-removed, then progress through three or more molecular distillation stages. Each stage features distinct heating temperatures optimized for the molecular weight distribution of the feed, creating four or more distinct distillation segments that separate complex mixtures into highly purified fractions or dramatically enrich specific target compounds.
Application One: Pharmaceutical Industry Purification Solutions
The pharmaceutical industry demands exceptional purity standards where even trace impurities can compromise drug efficacy or safety. Short Path Wiped Film Distillation technology has become indispensable for producing pharmaceutical-grade excipients, active ingredients, and specialty compounds that cannot tolerate conventional high-temperature processing methods.
Polyethylene Glycol Synthesis Enhancement
Polyethylene glycol (PEG) synthesis represents one of the most demanding applications where Short Path Wiped Film Distillation technology provides unique advantages. Traditional batch reactor polymerization produces PEG with dispersity indices below 1.05, yet still generates molecular weight mixtures rather than single-distribution products. The challenge stems from incomplete control over polymerization kinetics in conventional reactors, where heat transfer limitations and mixing inefficiencies create concentration gradients that promote polydisperse product formation. Short Path Wiped Film Distillation systems integrated with microchannel reactors overcome these fundamental limitations. The microchannel reactor enables precise control of the ethylene oxide and ethylene glycol polymerization through enhanced mixing, mass transfer, and heat transfer at the microscale level. The strict reaction time control and modular unit assembly achievable in microchannel systems, combined with downstream Short Path Wiped Film Distillation purification, produces pharmaceutical-grade PEG with narrow molecular weight distributions unattainable through batch processing alone.
Squalene Purification Excellence
Squalene, a vital terpene compound with potent antioxidant, anti-tumor, and cardiovascular protective properties, requires multi-stage Short Path Wiped Film Distillation for commercial-grade purification. Crude squalene extracted from plant sources contains fatty acids, esters, and other impurities that compromise bioactivity and stability. Traditional purification methods struggle to achieve the 98% purity levels demanded by pharmaceutical, cosmetic, and nutraceutical applications. Multi-stage Short Path Wiped Film Distillation addresses this challenge by progressively removing impurity classes through sequential molecular weight-based separation. After initial saponification and esterification processing, the crude product enters the first distillation stage where light impurities are removed. Subsequent stages operating at precisely controlled temperatures selectively separate fatty acids, esters, and residual processing solvents. The final stage concentrates ultra-pure squalene while recovering valuable solvents for reuse, dramatically reducing production costs while achieving measured purities reaching 98% or higher. This application demonstrates the technology's capability to transform moderately pure extracts into premium pharmaceutical ingredients through systematic molecular fractionation.
Application Two: Food Industry Enhancement and Safety
Food processing industries face stringent requirements for product purity, safety, and preservation of nutritional value. Short Path Wiped Film Distillation technology enables production of premium food ingredients while maintaining the delicate nutritional compounds that conventional thermal processing destroys.
Fish Oil Omega Fatty Acid Concentration
Fish oil purification represents a critical application where Short Path Wiped Film Distillation delivers transformative results. Marine fish oils contain valuable omega-3 fatty acids—eicosapentaenoic acid (EPA) and docosahexaenoic acid (DHA)—renowned for cardiovascular protection, anti-inflammatory effects, and cognitive health benefits. However, crude fish oil also contains impurity fatty acids, peroxides, and compounds causing undesirable color and fishy odors that limit consumer acceptance. Traditional fish oil processing struggles to separate EPA and DHA from other highly unsaturated fatty acids due to similar molecular structures and boiling points. Conventional methods achieve only 16% recovery rates while requiring additional decolorization and deodorization treatments that further reduce yields and potentially damage sensitive omega-3 structures. These limitations result in expensive, low-quality products that fail to meet consumer expectations for premium nutritional supplements. Short Path Wiped Film Distillation revolutionizes fish oil processing by exploiting subtle differences in molecular mean free paths rather than relying solely on boiling point separations. The technology achieves 70% recovery rates—more than quadruple traditional methods—while producing oils with excellent color, pure odor profiles, and minimal peroxide values. The process begins with crude fish oil esterification, washing, and dehydration to form fish oil ethyl esters. After degassing and deodorizing through thin film evaporation, the material enters a four-stage Short Path Wiped Film Distillation system that progressively concentrates EPA and DHA to 80% or higher total omega-3 content. The ability to produce products with customized DHA-to-EPA ratios provides manufacturers flexibility to target specific market segments from infant nutrition to cardiovascular health supplements.
Tea Oil Deacidification Processing
Camellia oleifera seed oil, promoted by the Food and Agriculture Organization as a premium healthy edible oil, suffers from free fatty acid content that compromises storage stability, nutritional value, and industrial processing characteristics. Traditional alkaline refining deacidification methods damage beneficial bioactive compounds while generating substantial waste streams that increase environmental compliance costs and reduce overall profitability. Short Path Wiped Film Distillation offers an elegant alternative that preserves tea oil quality while achieving comprehensive deacidification. Operating at low temperatures under high vacuum, the technology selectively removes free fatty acids without harsh chemical treatments or excessive thermal exposure. The liquid-liquid separation mechanism inherent to molecular distillation maintains the integrity of valuable phytosterols, tocopherols, and other health-promoting compounds that differentiate premium tea oil from commodity cooking oils. The result is a refined product meeting international quality standards while retaining the authentic nutritional profile that commands premium market positioning.
Application Three: New Materials and Polymer Processing
The advanced materials industry requires ultra-pure intermediates and precisely controlled molecular weight distributions that conventional separation technologies cannot reliably produce. Short Path Wiped Film Distillation enables manufacturers to achieve the exacting specifications demanded by high-performance applications.
Epoxy Resin Purification Systems
Epoxy resin manufacturing generates products containing unwanted low-boiling volatiles, chlorinated impurities, and molecular weight fractions outside target specifications. These impurities compromise mechanical properties, thermal stability, and electrical performance in demanding applications spanning aerospace composites, electronic encapsulation, and industrial coatings. Achieving low total chlorine content particularly challenges conventional purification methods, as residual chlorinated compounds promote degradation and reduce service life in critical applications. Two-stage Short Path Wiped Film Distillation systems address these requirements through sequential purification steps optimized for different impurity classes. The first stage removes low-boiling substances including residual solvents, moisture, and volatile reaction byproducts while preheating the material for efficient second-stage processing. The second stage separates light and heavy molecular weight fractions, selectively removing hetero groups and chlorinated impurities to produce low total chlorine epoxy resins meeting aerospace and electronics industry specifications. This systematic approach to molecular weight distribution control enables manufacturers to consistently produce high-purity resins with tightly controlled performance characteristics impossible to achieve through conventional distillation or precipitation-based purification methods.
Application Four: Petrochemical Refining and Regeneration
The petrochemical industry generates vast quantities of valuable materials that require separation, purification, or regeneration to maintain economic viability and environmental sustainability. Short Path Wiped Film Distillation technology enables efficient processing of these complex hydrocarbon mixtures while maintaining product quality and maximizing resource recovery.
Lubricating Oil Base Stock Production
Modern lubricating oil formulations demand precisely controlled base oil viscosity properties that conventional refining processes struggle to deliver consistently. Additionally, processing impurities including degraded additives, oxidation products, and contamination from service use must be comprehensively removed to restore performance characteristics. Traditional physical and chemical refining methods either fail to achieve complete impurity removal or generate substantial waste streams that increase processing costs and environmental compliance burdens. Multi-stage Short Path Wiped Film Distillation systems transform lubricating oil processing by enabling precise viscosity grade separation while thoroughly removing impurities through molecular weight-based fractionation. After pre-treatment removes gross contamination and light components through conventional distillation, the material enters a three-stage or four-stage Short Path Wiped Film Distillation cascade. The first stage distills relatively light base oil components as products while heavier fractions progress to subsequent stages. Each stage operates at independently optimized temperatures that selectively distill specific viscosity grade fractions, enabling production of multiple premium base oil grades from a single feed stream. This fraction cutting capability through multi-stage series connection provides tremendous flexibility for lubricant blending operations while maximizing valuable product recovery. Impurities including additives, oxidation products, and contamination are concentrated in final-stage residues for disposal or further processing, while base oils meeting virgin material specifications are recovered at yields impossible through conventional rerefining technologies. The economic and environmental benefits of this approach have made Short Path Wiped Film Distillation the preferred technology for waste lubricating oil regeneration and specialty base oil production worldwide.
Waste Lubricant Oil Regeneration Excellence
Waste lubricating oils represent both an environmental challenge and a valuable resource that Short Path Wiped Film Distillation technology efficiently converts into premium products. During service, lubricants deteriorate through oxidation, contamination, and additive depletion, resulting in altered physical and chemical properties that render them unsuitable for continued use. Traditional regeneration methods employ either physical refining techniques like centrifugal sedimentation and acid-clay treatment, or chemical refining using sulfuric acid, both of which suffer significant limitations. Physical refining provides only superficial cleaning, leaving impurities that compromise regenerated oil performance and stability. Chemical refining achieves deeper purification but generates corrosive waste streams and acid sludges that create disposal problems and environmental liabilities. Both conventional approaches struggle to produce regenerated oils matching virgin material specifications, limiting market acceptance and commercial viability. Short Path Wiped Film Distillation overcomes these fundamental limitations through molecular-level separation that removes deteriorated components while preserving valuable base oil molecules. The technology operates without harsh chemicals, generates minimal waste, and produces multiple base oil viscosity grades from a single waste oil feed stream. After light component removal through conventional distillation, the material progresses through multiple Short Path Wiped Film Distillation stages that systematically separate viscosity grades based on molecular weight differences. The regenerated base oils meet or exceed virgin material specifications while the concentrated residue contains only the most degraded molecules requiring disposal. This comprehensive regeneration capability has positioned Short Path Wiped Film Distillation as the environmentally preferred and economically superior technology for the growing waste lubricant recycling industry.
Application Five: Specialty Chemicals and Essential Oils
The specialty chemicals sector encompasses diverse applications requiring exceptional purity, preservation of fragile molecular structures, and recovery of expensive solvents. Short Path Wiped Film Distillation technology addresses these demanding requirements across essential oil processing, fine chemical purification, and specialty compound isolation.
Essential Oil Purification and Solvent Recovery
Plant-derived essential oils and specialty chemicals increasingly dominate cosmetic, fragrance, and personal care product formulations as consumers demand natural ingredients. However, extraction and purification of these sensitive compounds presents significant technical challenges that Short Path Wiped Film Distillation technology uniquely addresses. Supercritical CO2 extraction produces crude oils containing waxes, pigments, and extraction solvent residues that compromise odor quality and product stability. Traditional dewaxing and purification methods risk molecular rearrangement, oxidation, hydrolysis, and polymerization reactions that destroy valuable fragrance compounds and reduce commercial value. Short Path Wiped Film Distillation processes these delicate materials under minimal thermal stress while recovering expensive extraction solvents for reuse. For vegetable oil purification applications, crude materials first pass through falling film evaporators where light components including hexane, methanol, and ethanol solvents are removed and recovered. The concentrated oil then enters stripping towers for final purification, achieving residual solvent levels below 10 ppm while preserving heat-sensitive bioactive compounds. This integrated approach combining thin film evaporation with Short Path Wiped Film Distillation enables continuous processing of essential oils and specialty chemicals with exceptional quality and economic efficiency.
Rose Essential Oil Premium Production
Rose essential oil commands premium market pricing as one of the world's most expensive aromatics, valued for hormonal balancing properties, skincare benefits, and psychological effects. However, producing pharmaceutical-grade rose oil requires sophisticated purification that preserves the complex aromatic profile while removing impurities that compromise therapeutic activity and shelf stability. Traditional steam distillation and solvent extraction methods produce crude oils requiring further refinement that risks damaging the delicate terpene and ester compounds responsible for rose oil's distinctive character and therapeutic properties. Short Path Wiped Film Distillation technology enables production of ultra-pure rose essential oil through gentle, low-temperature processing that maintains molecular integrity. Clean rose petals undergo initial steam distillation to release fragrance compounds, followed by oil-water separation and thin film evaporation to remove residual water. The concentrated oil then enters Short Path Wiped Film Distillation systems operating under deep vacuum conditions where final purification occurs at temperatures well below conventional distillation requirements. The result is pharmaceutical-grade rose essential oil with authentic aroma profiles, exceptional purity, and maximum therapeutic activity that commands premium market positioning in high-end cosmetic, aromatherapy, and pharmaceutical applications.
Monoglyceride Purification for Food Applications
Glycerin monostearate (GMS) serves as a critical food emulsifier, plasticizer, and processing aid, but commercial production generates mixtures containing diglycerides, triglycerides, free fatty acids, and unreacted glycerol that must be removed to meet food-grade specifications. Short Path Wiped Film Distillation technology enables production of high-purity monoglycerides exceeding 95% active content through systematic molecular weight-based separation. The production process begins with glycerol and hydrogenated oil esterification followed by filtration and sodium hydroxide neutralization to produce crude GMS. The crude material then enters membrane filtration and two-stage Short Path Wiped Film Distillation processing. The first stage removes unreacted glycerol and free fatty acids operating at moderate vacuum and temperature conditions. The second stage separates diglycerides and triglycerides from the target monoglyceride product through precise molecular weight discrimination made possible by the short vapor path and high vacuum operation characteristic of this technology. The purified monoglyceride product meets stringent food safety standards while exhibiting superior emulsification performance that enhances texture, extends shelf life, and improves processing characteristics in bakery, dairy, and confectionery applications worldwide.
Conclusion
Short Path Wiped Film Distillation technology has revolutionized chemical processing across pharmaceutical, food, petrochemical, and specialty chemical industries by enabling efficient purification of heat-sensitive compounds under minimal thermal stress. The multi-stage architecture, precise temperature control, and molecular weight-based separation mechanisms deliver exceptional product purity, high recovery rates, and continuous processing capabilities that conventional methods cannot match. As industries increasingly demand sustainable processing technologies that minimize waste while maximizing product quality and economic efficiency, Short Path Wiped Film Distillation continues expanding into new applications where its unique capabilities solve previously intractable separation challenges.
Cooperate with Xi'an Well One Chemical Technology Co., Ltd
Since 2006, Xi'an Well One Chemical Technology Co., Ltd., backed by Xi'an NewSet Chemical Equipment Technology Co., Ltd., has specialized in synthesis and purification separation equipment manufacturing. With comprehensive facilities including a 1,500 m² office, 500 m² R&D laboratory, and 4,500 m² factory covering over 5,000 m² total area, the company delivers complete process development, equipment design, laboratory testing, and pilot services. Their expert design teams encompassing process development, equipment engineering, 3D modeling, automation control, and operational support have accumulated 19 years of experience producing experimental-level thin film distillation systems, pilot-scale molecular distillation devices, industrial-scale molecular distillation equipment, and multi-level continuous production systems.
As a leading China Short Path Wiped Film Distillation factory and trusted China Short Path Wiped Film Distillation supplier, Well One maintains rigorous quality standards through ISO9001 certification, CE compliance, and UL testing laboratory capabilities. Each equipment unit undergoes comprehensive testing before shipment, with all materials carrying verified test reports from strictly screened suppliers. The company serves as a premier China Short Path Wiped Film Distillation manufacturer offering competitive China Short Path Wiped Film Distillation wholesale pricing for Short Path Wiped Film Distillation for sale, delivering exceptional Short Path Wiped Film Distillation price value. Their commitment to High Quality Short Path Wiped Film Distillation production ensures customers receive reliable, certified equipment backed by comprehensive R&D, production, sales, and technical support services.
Well One's OEM and ODM customization capabilities enable tailored solutions featuring UL Listed electrical components, compact footprints, and intuitive operation. Their multi-stage WMD-200-4 systems integrate 2 m² evaporator areas, magnetic sealing, precision gear pumps, and SS316L construction with independent heating cycles, vacuum systems, and multi-temperature cooling units supporting continuous 24-hour production. Applications span health products, petrochemicals, new materials, and specialty chemicals with proven success in natural vitamin E purification, epoxy resin refinement, Fischer-Tropsch wax processing, and numerous other demanding applications. Contact their experienced team at info@welloneupe.com to discuss your specific Short Path Wiped Film Distillation requirements and receive customized solutions backed by decades of purification expertise. Save this resource for future reference when selecting advanced separation equipment that delivers measurable performance advantages and long-term operational reliability.
