Molecular Distillation Apparatus - High Efficiency Solutions
Are you struggling with thermal degradation of heat-sensitive compounds during purification? Traditional distillation methods often fail when processing pharmaceutical intermediates, essential oils, or specialty chemicals that deteriorate at high temperatures. Molecular Distillation Equipment offers breakthrough separation technology that operates below boiling points, preserving product integrity while achieving purities up to 98%. This comprehensive guide reveals how advanced molecular distillation apparatus delivers high-efficiency solutions across pharmaceutical, food, and petrochemical industries.
Understanding Molecular Distillation Equipment Technology
Molecular Distillation Equipment represents a revolutionary approach to liquid-liquid separation that fundamentally differs from conventional distillation processes. This technology operates under extreme vacuum conditions, typically reaching 0.001 mbar, allowing separation to occur at temperatures significantly below the boiling point of target compounds. The principle relies on the difference in mean free path of molecules rather than vapor-liquid equilibrium, making it ideal for heat-sensitive materials that would otherwise decompose under traditional distillation conditions.
Core Working Principles of Molecular Distillation Systems
The separation mechanism in Molecular Distillation Equipment depends on molecular movement under high vacuum. When feed material enters the evaporator, it spreads as a thin film across a heated surface through mechanical wipers or rollers. Light molecules with shorter mean free paths evaporate and travel directly to an internal condenser positioned just millimeters away, while heavier molecules remain in the liquid phase and flow downward. This short-path design minimizes thermal exposure time, typically keeping materials at elevated temperatures for only seconds rather than hours. The technology incorporates precision-engineered components including jacketed material tanks, high-precision gear pumps delivering 5-25 L/H flow rates, and magnetic sealing systems that maintain vacuum integrity. Advanced control systems from ABB or SEW brands regulate rotation speeds up to 350 rpm, ensuring optimal film formation and heat transfer efficiency throughout the separation process.
Advantages Over Traditional Separation Methods
Conventional distillation, solvent extraction, and chromatography face significant limitations when processing thermally unstable compounds. Traditional batch reactors require extended heating periods, causing oxidation, polymerization, or molecular rearrangement in sensitive materials. Molecular Distillation Equipment overcomes these challenges by operating at temperatures 50-100°C lower than conventional methods while achieving superior separation efficiency. For instance, fish oil purification using traditional methods yields only 16% recovery with poor color and strong odor, whereas molecular distillation achieves 70% recovery rates with excellent organoleptic properties. The technology eliminates solvent residues that plague extraction methods, with final products containing less than 10 ppm residual solvents. Multi-stage molecular distillation configurations enable fraction cutting, allowing simultaneous purification and solvent recovery that reduces operational costs. The closed-system design prevents oxidation exposure, maintaining the antioxidant properties and bioactivity of natural products throughout processing.
Industrial Applications of High-Efficiency Molecular Distillation Apparatus
Pharmaceutical Industry Purification Solutions
Molecular Distillation Equipment has become indispensable for pharmaceutical manufacturing, particularly in producing high-purity intermediates and active pharmaceutical ingredients. Polyethylene glycol synthesis presents unique challenges, as traditional batch reactors cannot achieve single-distribution molecular weight profiles even under stringent anhydrous conditions. Microchannel reactors combined with molecular distillation technology enable controllable polymerization with dispersity indexes below 1.05, creating pharmaceutical-grade PEG suitable for drug delivery applications. Squalene purification demonstrates the technology's versatility, processing crude extracts through multi-stage molecular distillation to remove fatty acid and ester impurities. After saponification and esterification pre-treatment, the equipment achieves 98% purity squalene with preserved antioxidant and anti-tumor bioactivities. The 316L stainless steel construction with UL-certified electrical components ensures compliance with GMP standards, while the jacketed insulation system maintains stable processing temperatures critical for pharmaceutical quality assurance.
Food Industry Processing Excellence
Fish oil enrichment represents a landmark application where Molecular Distillation Equipment transformed product quality and economics. EPA and DHA ethyl esters have similar molecular properties to contaminant fatty acids, making separation challenging. Four-stage molecular distillation systems process pre-treated fish oil ethyl esters to produce concentrates containing 80% combined EPA and DHA with minimal peroxide values and neutral odor profiles. The technology's gentle processing preserves the polyunsaturated fatty acid structure, preventing the oxidative degradation common in high-temperature refining. Tea oil deacidification showcases the equipment's precision in preserving nutritional value while removing undesirable free fatty acids. Traditional alkaline refining damages bioactive compounds and generates significant wastewater, whereas molecular distillation operates as a purely physical separation process. The low-temperature, high-vacuum environment maintains the characteristic flavor compounds and vitamin content that position camellia seed oil as a premium healthy edible oil recognized by international food safety organizations.
Petrochemical and Essential Oil Refinement
Waste lubricating oil regeneration through molecular distillation technology addresses both environmental concerns and resource recovery. After pre-treatment removes particulates and light diesel fractions, multi-stage molecular distillation separates base oils by viscosity grade, producing multiple specification products from a single feedstock. The first stage distills light base oil components while heavy fractions advance to subsequent stages, with residual additives and degradation products discharged as minimal waste streams. This cascade configuration achieves base oil regeneration rates exceeding 85% while enabling viscosity-specific product blending. Rose essential oil purification exemplifies the technology's capability with extremely valuable, thermally sensitive natural products. Supercritical CO2-extracted rose crude oil contains waxes and off-odors that diminish quality, but traditional refining causes molecular rearrangement and destroys fragrance compounds. Molecular Distillation Equipment operating with 0.01 Pa vacuum preserves the delicate terpene profile while removing contaminants, yielding high-purity rose essential oil commanding premium prices in cosmetics and aromatherapy markets.

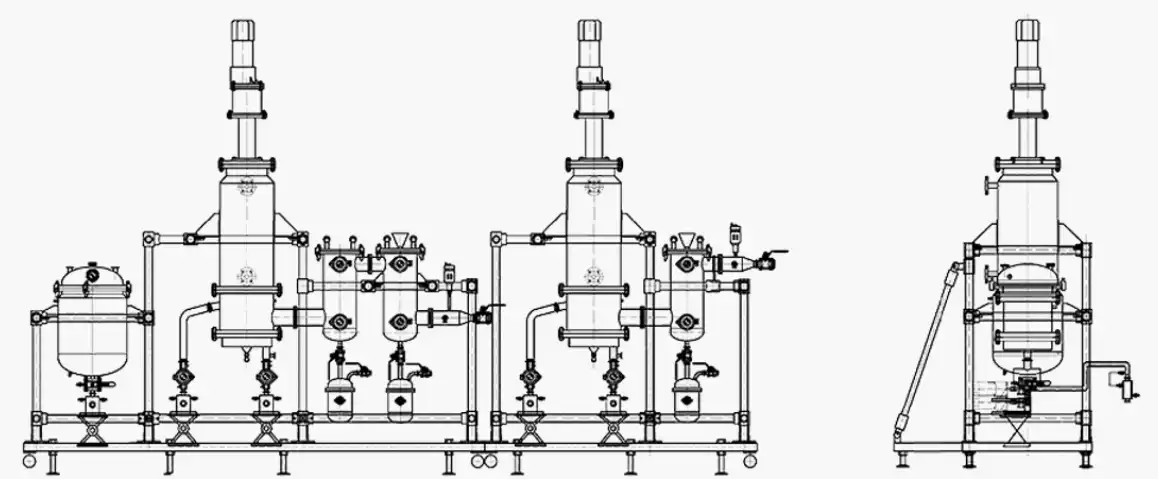

Technical Specifications and Equipment Configuration
WMD-30 Model Detailed Parameters
The WMD-30 molecular distillation system represents well-engineered design optimized for pilot-scale and small production applications. Its 0.3 square meter evaporation area paired with 0.75 square meter internal condenser provides efficient vapor capture, while the 210mm inner diameter evaporator accommodates throughput requirements of research and development laboratories. The 30-liter jacketed material tank features dual sight glasses for process monitoring and an insulated ball valve ensuring thermal stability during feed operations. High-precision gear pumps with 200W variable frequency drives deliver controlled 5-25 L/H flow rates, critical for maintaining optimal film thickness on the evaporator surface. The magnetic sealing system eliminates shaft seal leakage risks associated with mechanical seals, maintaining vacuum integrity essential for low-pressure operation. Wiper or roller scraper configurations fabricated from imported PTFE or graphite provide chemical resistance while efficiently spreading feed material. The dual-pump vacuum system combines a vane pump achieving 21 L/S displacement with a turbo pump delivering 600 L/S capacity, reaching ultimate vacuum levels of 0.001 mbar required for separating high-boiling-point compounds.
Integrated Heating and Cooling Systems
Thermal management represents a critical factor in molecular distillation performance and product quality. The WMD-30 configuration incorporates three dedicated heating/cooling circuits serving distinct functions. The main evaporator heater provides 10 kW heating capacity with UC-200-5 temperature control from room temperature to 300°C and 35 L/min circulation flow ensuring uniform heat distribution across the evaporation surface. Material insulation heating employs a separate 5 kW system controlling feed lines and tanks from room temperature to 200°C, preventing viscosity increases and crystallization in transfer piping. The internal condenser requires precise temperature control to maximize vapor capture efficiency, utilizing a combined heater/chiller unit with 4.5 kW heating and 7.5 kW cooling capacity spanning -20°C to 200°C. An external cold trap operating from -80°C to room temperature with dedicated refrigeration provides final vapor capture, protecting vacuum pumps from contamination while recovering trace product quantities. This comprehensive thermal management system enables processing diverse materials ranging from low-melting waxes to high-boiling silicone oils within a single equipment configuration.
Quality Assurance and Manufacturing Excellence
Certification Standards and Component Selection
Well One's Molecular Distillation Equipment adheres to rigorous international safety and quality standards, holding CE, ISO, UL, and ATEX certifications that validate design integrity and operational safety. All electrical components comply with UL listing requirements, with SEW brand motors and ABB frequency converters meeting stringent safety specifications for hazardous area applications. KingLai vacuum ball valves specifically designed for high-vacuum service ensure leak-tight performance throughout the system's pressure range. The PTFE and graphite wiper materials provide chemical compatibility across pH ranges and solvent systems while maintaining low friction coefficients that minimize mechanical wear. The 316L stainless steel construction offers superior corrosion resistance essential for processing aggressive chemicals, with electropolished surface finishes achieving Ra values below 0.4 micrometers that facilitate cleaning and prevent product contamination. Over 30 proprietary patents protect innovative design features including distributor configurations, scraper geometries, and vapor management systems developed through 17 years of manufacturing experience.
Customization Capabilities and OEM Services
With over 50 successful application cases spanning pharmaceutical, food, petrochemical, and specialty chemical industries, Well One delivers customized Molecular Distillation Equipment solutions addressing specific process requirements. The company's 500 square meter R&D laboratory provides comprehensive feasibility studies, process development, and pilot testing services that validate separation performance before full-scale equipment fabrication. 3D modeling capabilities enable virtual equipment visualization, allowing customers to review layouts and integration with existing facilities during design phases. Customization examples include dual-stage 1 square meter wiped film configurations for high-throughput applications, glass feeding tank systems with external condensers for laboratory-scale operations, and integrated stirred tank dissolution systems for solid feedstock processing. The 4500 square meter manufacturing facility houses CNC machining centers and specialized processing equipment enabling single-source fabrication from raw materials to finished systems. Assembly procedures follow documented quality protocols with vacuum leak testing verifying system integrity before shipment. The 12-month warranty covers materials and workmanship, with technical support available throughout equipment operational life.
Conclusion
Molecular Distillation Equipment delivers unmatched separation efficiency for heat-sensitive compounds across diverse industries. With vacuum levels reaching 0.01 Pa, multi-stage configurations, and UL-certified components constructed from 316L stainless steel, these systems preserve product integrity while achieving exceptional purities. Seventeen years of manufacturing expertise and comprehensive customization capabilities position this technology as the optimal solution for challenging purification requirements.
Cooperate with Xi'an Well One Chemical Technology Co., Ltd
Since 2006, Xi'an Well One Chemical Technology Co., Ltd., backed by Xi'an NewSet Chemical Equipment Technology Co., Ltd., has specialized in synthesis and purification separation equipment manufacturing. Our 1500 m² office, 500 m² R&D laboratory, and 4500 m² factory deliver process development, design, testing, and pilot services. We offer lab-scale to industrial-scale Molecular Distillation Equipment with comprehensive R&D, production, sales, and support services.
Why Choose Well One as Your China Molecular Distillation Equipment Manufacturer？
- Premium Quality: Selected materials ensure top-grade products
- OEM & ODM: Custom designs with 3D animation visualization
- Comprehensive Service: R&D, production, sales, and technical support
- Own Factory: Over 5,000㎡ manufacturing facility with CNC machining centers
As a leading China Molecular Distillation Equipment supplier and China Molecular Distillation Equipment factory, we provide China Molecular Distillation Equipment wholesale solutions with competitive Molecular Distillation Equipment price. Our High Quality Molecular Distillation Equipment for sale serves pharmaceutical, food, new materials, petrochemical, essence, and fine chemicals industries. With CE, ISO, UL, and ATEX certifications, 17 years of experience, and over 30 patents, we deliver reliable separation technology. Contact us at info@welloneupe.com to discuss your purification challenges and receive customized solutions. Save this page to access technical specifications whenever needed.
References
1. Perry, Robert H. and Green, Don W. "Perry's Chemical Engineers' Handbook, Eighth Edition" - Section on Distillation and Gas Absorption, McGraw-Hill Professional, 2008.
2. Batistella, Cintia Bernardo and Maciel Filho, Rubens "Molecular Distillation: Rigorous Modeling and Simulation for Recovery of Valuable Compounds from Fatty Acids" Applied Biochemistry and Biotechnology, Springer, 2002.
3. Martini, Sandro and Añón, María Cristina "Storage Stability and Physicochemical Properties of High-EPA Concentrates from Menhaden Fish Oil" Journal of the American Oil Chemists' Society, Wiley, 2005.
4. Cvengros, Jan and Lutisan, Jozef "Mean Free Path of Molecules on Molecular Distillation" Chemical Engineering Journal, Elsevier, 1995.
